Pickleball Light

NightShine Blade

A linear court light built for pickleball and padel: 240 or 320 watts, up to 57,000 lumens, IP66 and IK10.

Request a light study Call 678-867-9200

Specifications

Light output

41,000 to 57,000 lm

Power

240 or 320 W

Efficacy

Up to 178 lm/W (5050 LED, Ra70; Ra80 optional)

Warranty

7 years

Serviceable parts

Surge protector, driver

Controls

Download spec sheet

Overview

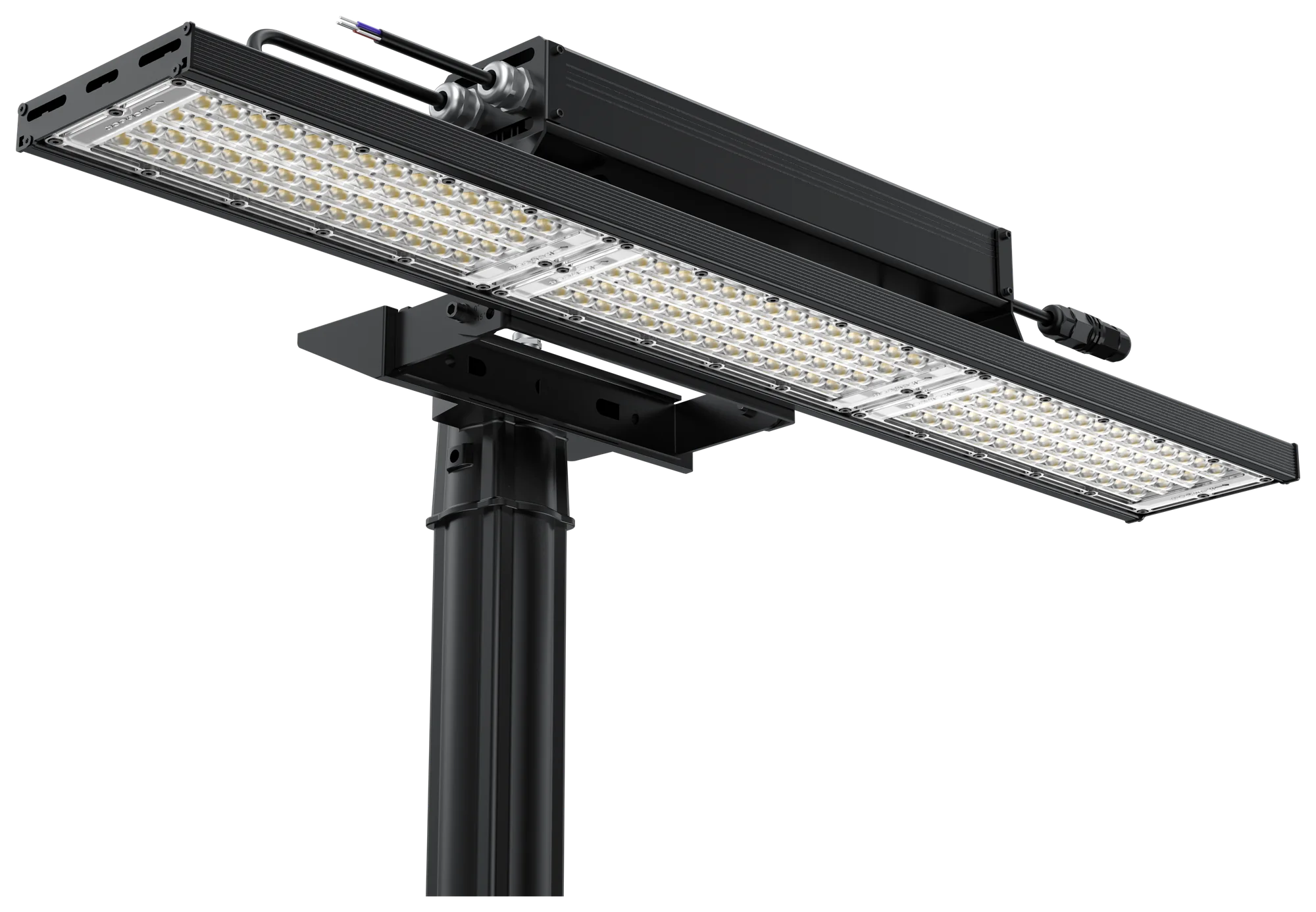

NightShine Blade (SP19) is a linear sports light built for outdoor and indoor pickleball and padel courts. Its long shape fits the court, so fewer fixtures deliver the same lighting performance, and the large luminous surface gives uniform, comfortable light. Asymmetric 38° optics allow horizontal mounting without complex aiming.

Key features

240 W (up to 41,594 lm) or 320 W (up to 57,135 lm)
Up to 178 lm/W efficacy
Asymmetric 38° optics, mounts level with no complex aiming
IP66, IK10, C5 corrosion rating, 1,500-hour salt spray tested
Bracket, pole or chain mounting; optional visor
0-10V dimming, 4000K or 5000K

See your courts lit before you commit.

Send us your site and we’ll return a photometric light study and a fixed-price proposal. Guaranteed 24-hour response.

Request a light study 678-867-9200
