Contractor Series Court Lighter

NightShine Array

Contractor-series tennis and pickleball lighting in two sizes: 400 W (68,000 lm) and 600 W (102,000 lm), with forward-projection court optics.

Request a light studyCall 678-867-9200

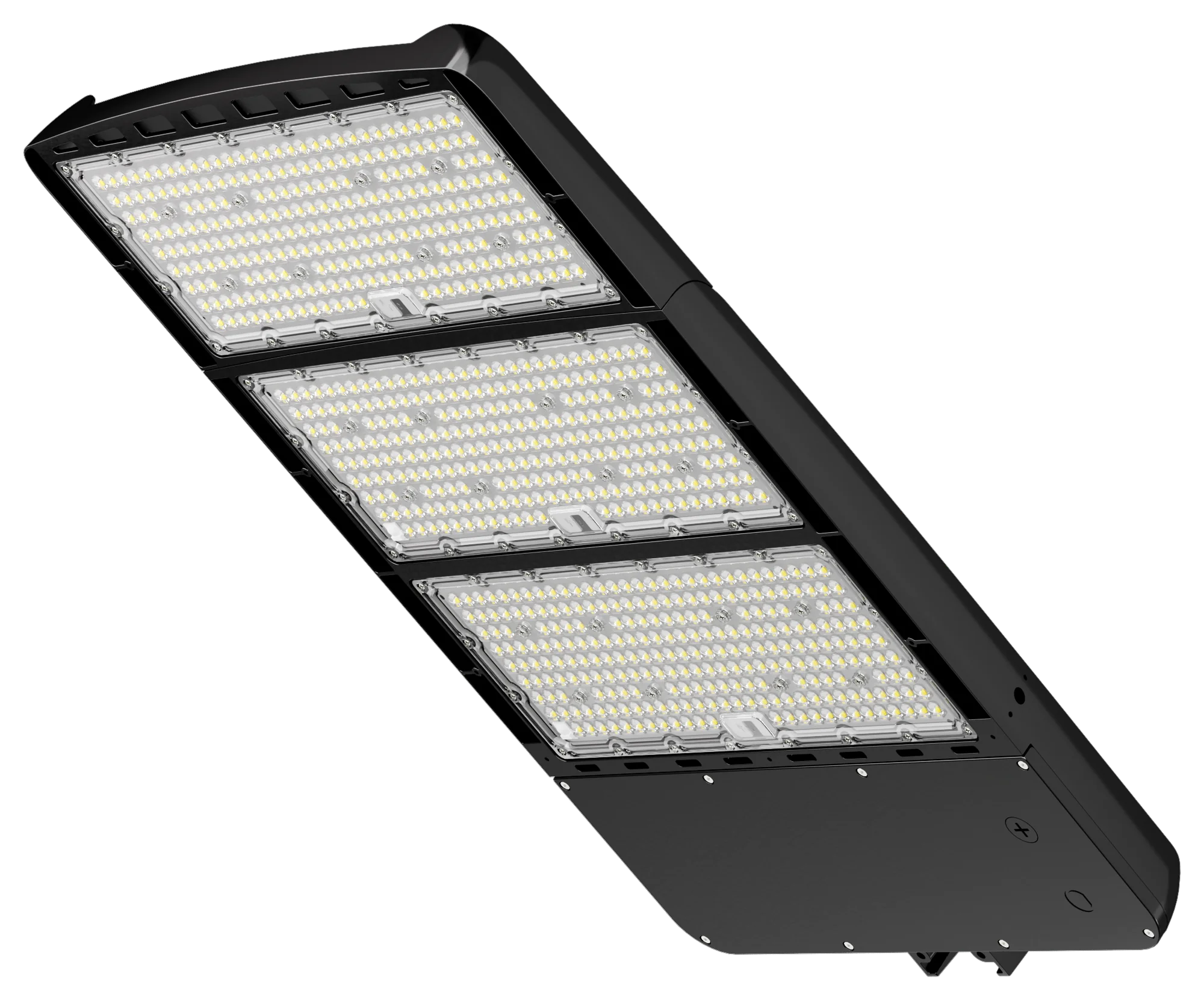

NightShine Array
Specifications
Light output
68,000 to 102,000 lm
Power
400 or 600 W (3-level selectable)
Efficacy
Up to 170 lm/W (Ra70)
Warranty
7 years
Serviceable parts
Surge protector, driver
Controls
0-10V dimming; optional photocell and motion sensor
Download spec sheet
Overview

NightShine Array is the contractor-series court lighter. Forward-projection tennis court optics push light across the playing surface for strong coverage and uniformity, and each fixture has 3-level wattage selection so one unit covers several light levels. It upgrades 1,000 W and 1,500 W metal halide fixtures with up to 60% energy savings.

Key features
  • 400 W (up to 68,000 lm) or 600 W (up to 102,000 lm)
  • 3-level wattage selectable: 400/320/240 W or 600/480/360 W
  • 600 W meets USTA Class I and II; 400 W meets USTA Class III and IV
  • Tennis court and sports field optics
  • 3000K, 4000K or 5000K; IP66, IK08
  • Slipfitter, square or round pole arm, trunnion, yoke, tenon or wall mount; optional glare shield
  • Optional photocell and Zhaga motion sensor

See your courts lit before you commit.

Send us your site and we’ll return a photometric light study and a fixed-price proposal. Guaranteed 24-hour response.
